Choose electricity practice for a lesson, homework or revision sequence. Start with charge, current and potential difference, then move to circuit measurements, resistance, components and electrical power. Each activity has a separate pupil PDF and worked solutions.
Select Combined Science Trilogy or Separate Physics and the appropriate tier before downloading. Static electricity is Separate Physics content; mixed sheets identify any Higher-only or Separate-only questions. Required-practical sheets prepare pupils to plan and analyse an investigation.
AQA GCSE electricity revision notesAQA GCSE
AQA GCSE · 8463 / 8464
Practise Q = It, V = IR and E = QV with applied AQA GCSE questions and worked answers for Combined Science and Separate Physics.
Both tiers: complete all questions.
AQA GCSE · 8463 / 8464
Practise series and parallel circuits with AQA GCSE questions, emergency-lighting scenarios and worked answers for Combined Science and Separate Physics.
Both tiers: complete all questions; selected resistor-combination practical support.
AQA GCSE · 8463 / 8464
Practise resistance calculations, I–V graphs and circuit practicals with applied AQA GCSE questions and worked answers for Combined Science and Separate Physics.
Both tiers. Resistance and I–V practicals:8463 RP3/RP4;8464 RP15/RP16.
AQA GCSE · 8463 / 8464
AQA GCSE resistance practical worksheet with answers. Investigate wire length and resistor networks, analyse graphs, control variables and write a method.
Combined Trilogy 8464 and Separate Physics 8463, both tiers. Written RP3/RP15 preparation for both wire-length and resistor-network strands, not evidence of practical completion.
AQA GCSE · 8463 / 8464

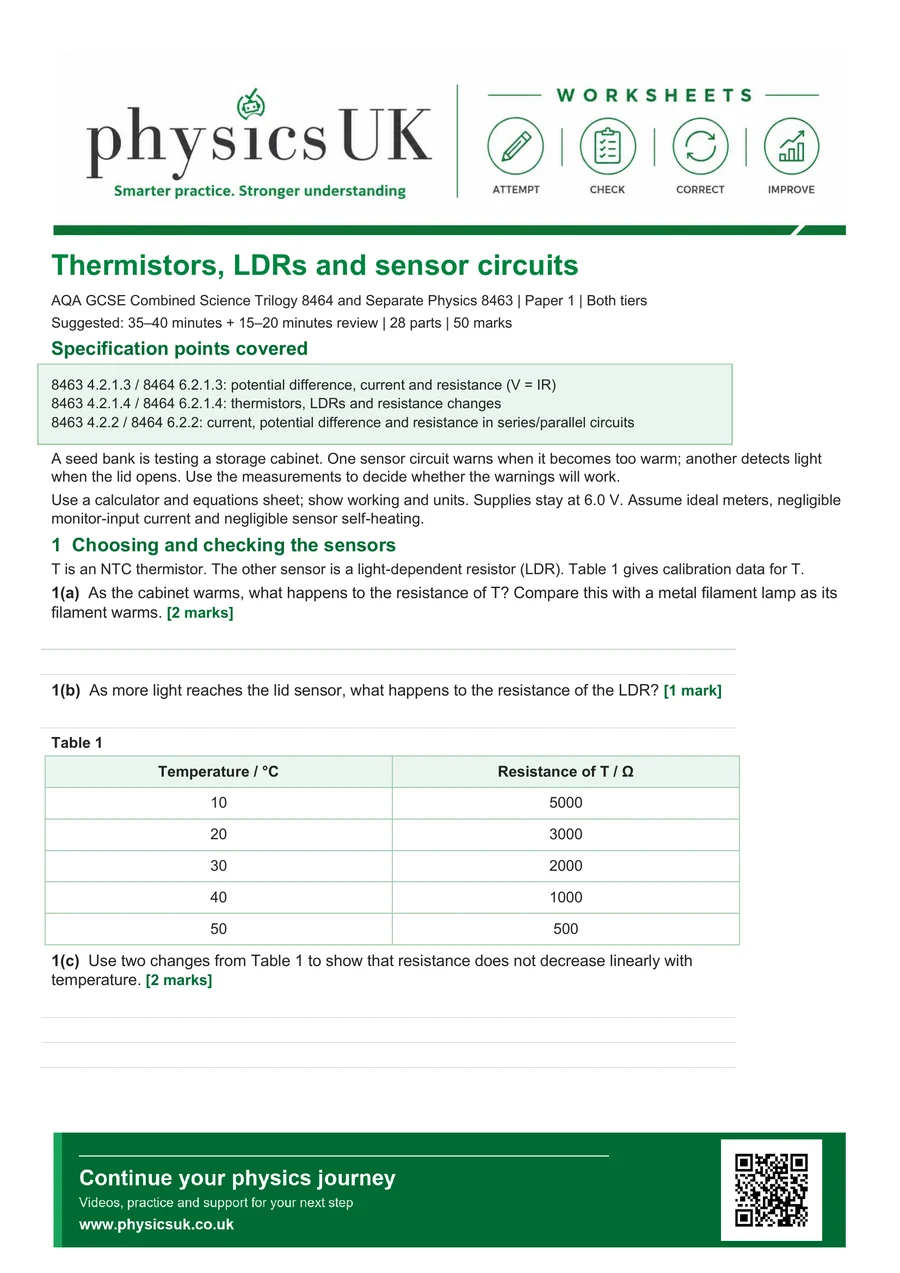

AQA GCSE thermistor and LDR worksheet with answers. Interpret sensor data, apply resistance and circuit rules, and select components for stated conditions.
Combined Trilogy 8464 and Separate Physics 8463, both tiers. Supplied trigger rules and GCSE circuit reasoning; no A-level potential-divider or parallel-resistance formula.
AQA GCSE · 8463 / 8464

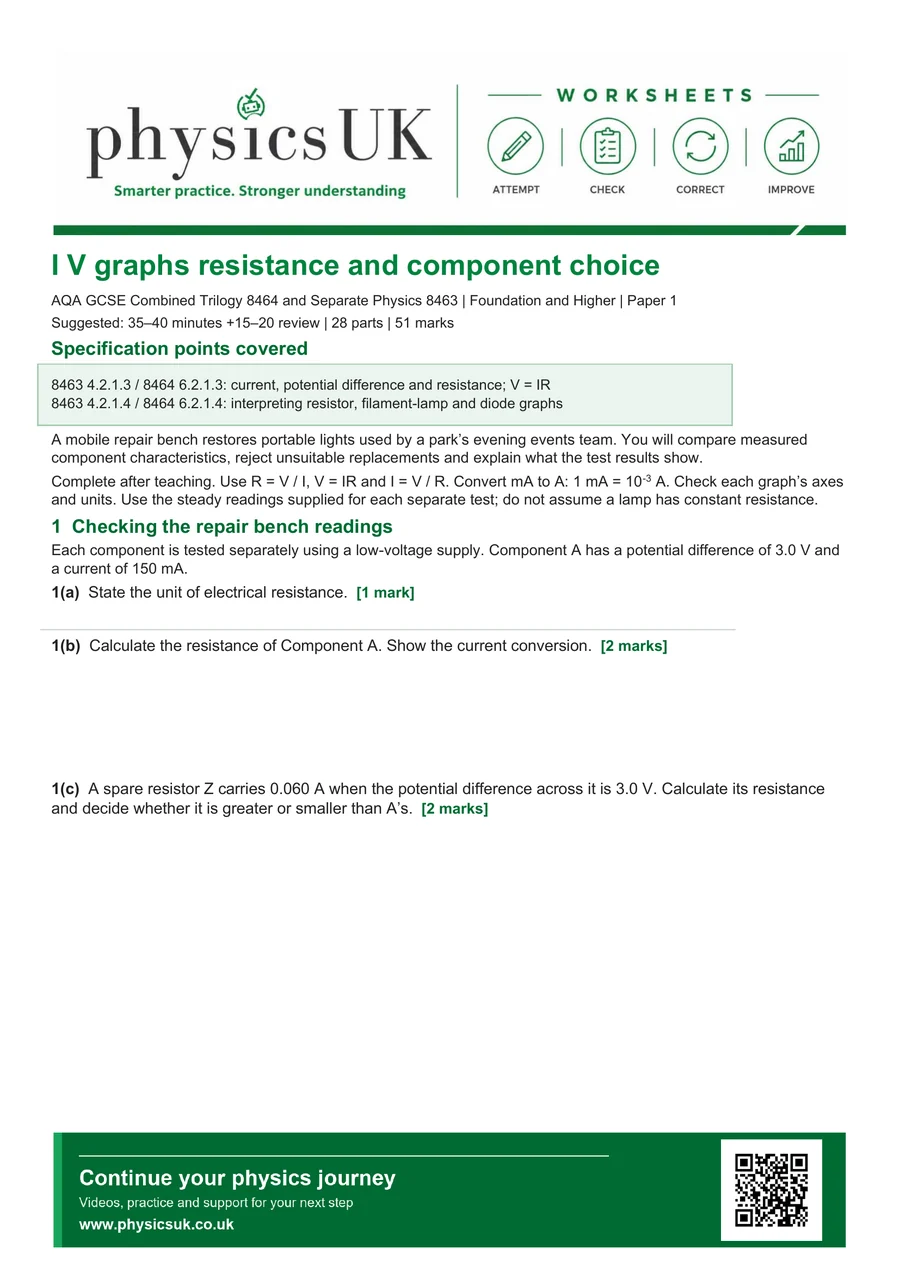

AQA GCSE I–V graphs worksheet with answers. Read resistor, lamp and diode graphs, calculate resistance and choose components for operating conditions.
Combined Trilogy 8464 and Separate Physics 8463, both tiers. Check which quantity is on each axis; a targeted graph/application follow-up, not a complete I–V practical pack.
AQA GCSE · 8463 / 8464

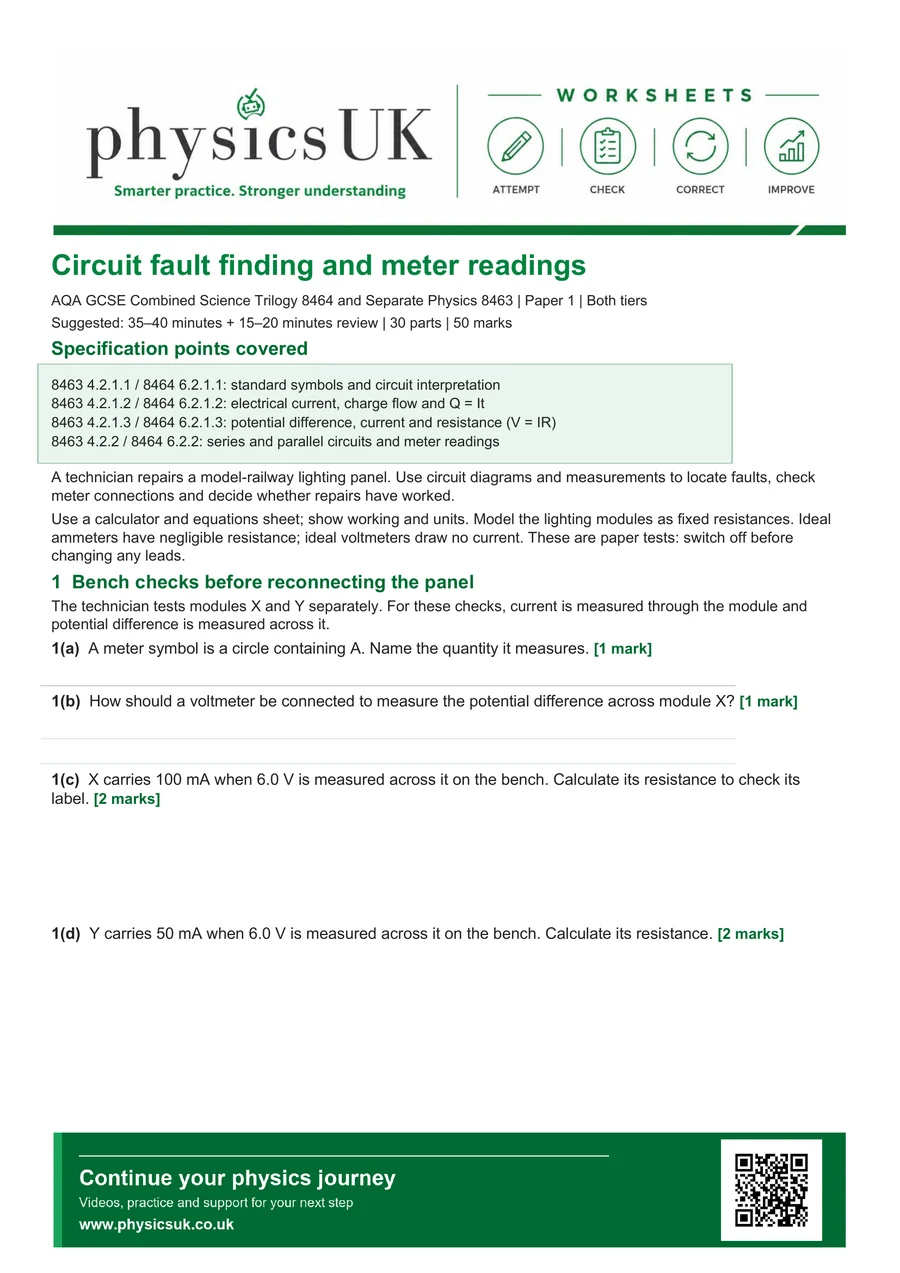

AQA GCSE circuit fault-finding worksheet with answers. Interpret meter readings, diagnose broken connections and shorts, and justify circuit repairs.
Combined Trilogy 8464 and Separate Physics 8463, both tiers. Ideal meters and fixed-resistance models stated. Qualitative short-circuit diagnosis, not live mains testing.
AQA GCSE · 8463 / 8464
Practise AQA GCSE electrical power and energy calculations, appliance comparisons, mains safety and National Grid losses with a PDF worksheet and worked answers.
Both tiers: core Questions 1–6. OptionalQ7 costs replace1(c–e) for a matched lesson; not Higher-only content.
AQA GCSE · 8463 / 8464

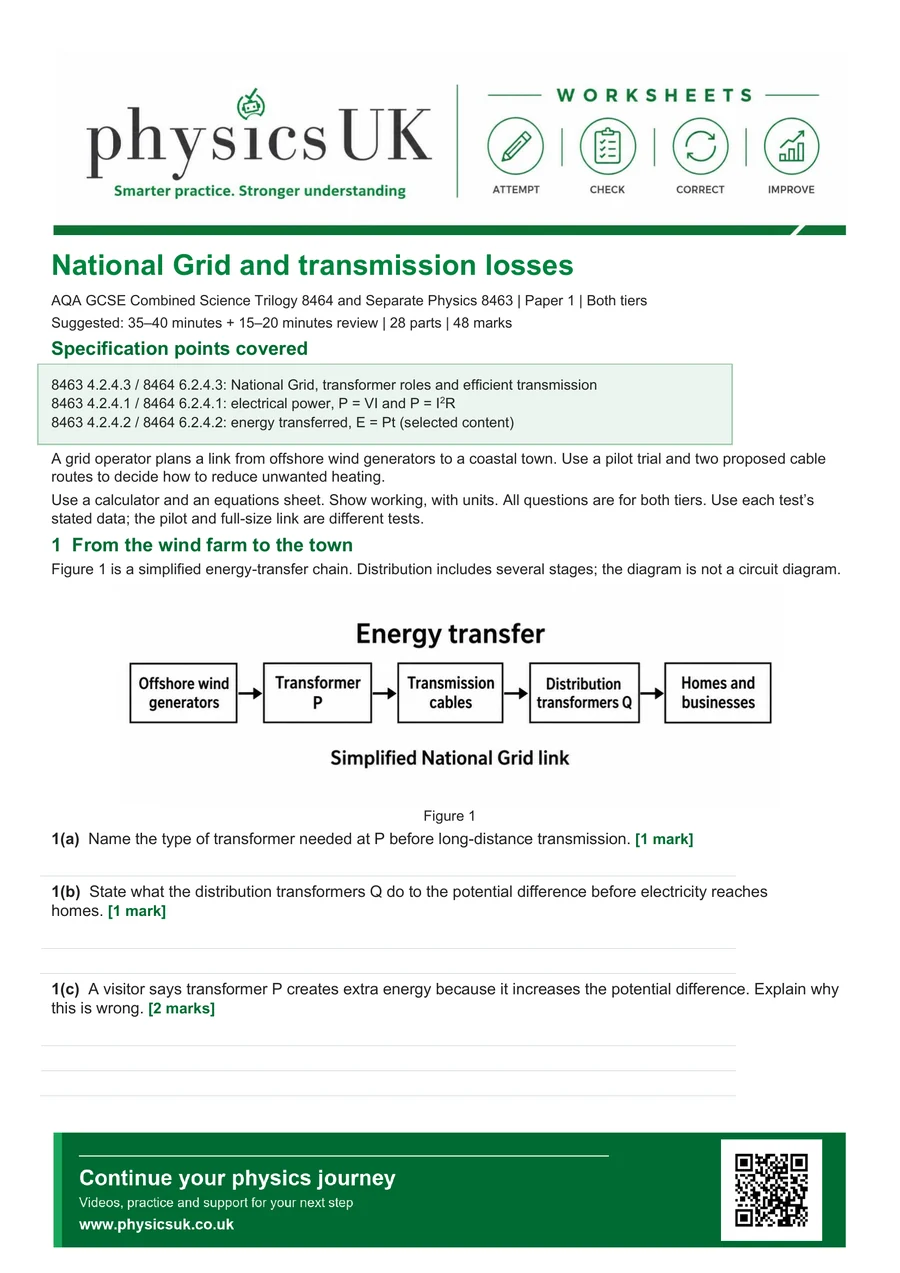

AQA GCSE National Grid worksheet with answers. Compare transmission currents and losses, calculate energy costs and explain why high voltage is used.
Combined Trilogy 8464 and Separate Physics 8463, both tiers. Shared National Grid and power content only; no transformer turns-ratio, coil-power relation or induction mechanism.
AQA GCSE · 8463
AQA GCSE Separate Physics static electricity worksheet with answers. Apply electron transfer, charging and field ideas to practical electrostatic problems.
Separate Physics 8463 only, both tiers, Paper 1. Qualitative charging and fields; no Coulomb law or field-strength equations. Conductor redistribution and earthing are scaffolded.
Clear one or more filters to see the available resources.
