AQA GCSE Physics Electromagnetic Induction and Generator Effect Worksheet
AQA GCSE Separate Physics Higher induction worksheet with answers. Interpret magnet-and-coil evidence, compare induced outputs and explain energy transfers.
What is covered
Questions and skills covered

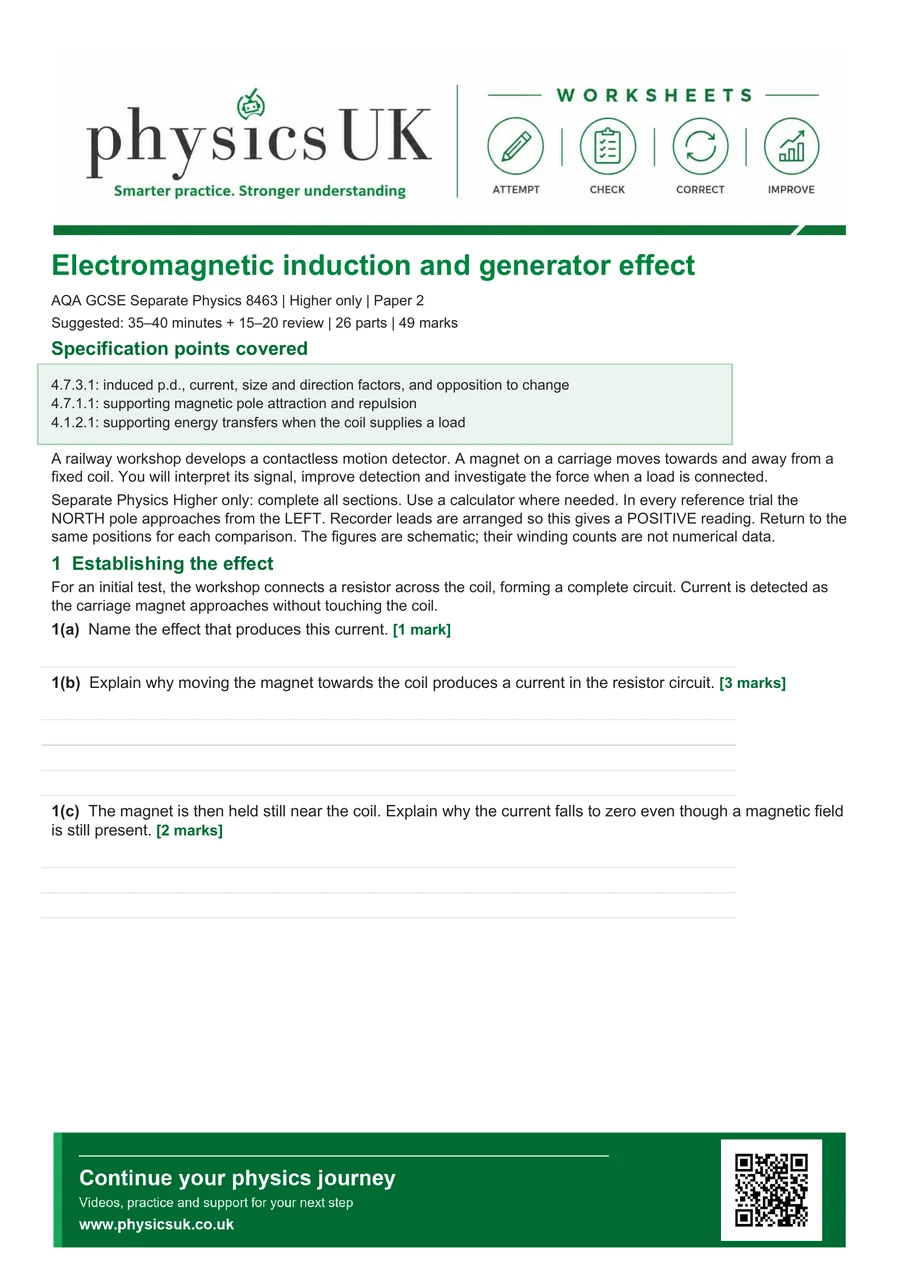

The worksheet contains 6 pages of printable questions. A separate 6-page solutions PDF makes it easy to mark, review or share answers after the activity.
- Changing magnetic field induces p.d.
- Current needs a complete circuit
- Static field alone is insufficient
- North/south approach and same-side withdrawal polarity
- Swapped measuring leads
- Magnet and coil moving together
- Positive/zero/negative qualitative pulse sequence
- Faster same-path motion gives higher, shorter pulse
- mV to V conversion and signed threshold decisions
- Strong-field changes do not guarantee a numerical threshold
- Arithmetic mean of repeated peak readings
- Coil-turn improvement and fair experimental comparison
- Scaffolded six-mark comparative method
- Loaded coil field opposes the original change
- Repulsion on approach and attraction on withdrawal
- External work at constant speed versus kinetic loss when coasting
About this activity
A railway workshop develops a contactless motion detector and investigates how its electrical signal and magnetic resistance change under controlled conditions.
Before you start
After teaching induced p.d./current, magnetic poles and energy transfers. All signs refer to a stated recorder convention; no right-hand rule or Faraday equation assumed.
A question from the worksheet
Question6(c), pupil page6
A north pole on the left is withdrawn to the left from a loaded coil. Predict the near-end pole and force direction.
Show the answer
The coil’s near end becomes south; attraction pulls the magnet right, opposing the leftward withdrawal.
Common error: Saying the induced field always opposes the original field, or assuming any induced p.d. must produce current in an open circuit.
Revise the physics
Specification fit
AQA GCSE Physics Worksheets
8463 · 4.7.3.1, 4.7.1.1, 4.1.2.1
- 8463: 4.7.3.1, 4.7.1.1, 4.1.2.1
Choose the correct pathway: Whole worksheet: Separate Physics 8463 Higher only, Paper 2. The qualitative pulse trace is not a rotating-generator sine-law assessment. No Foundation or Combined route.
Classroom use
Use the worksheet for class practice, homework, intervention, cover work or revision. Keep the PhysicsUK attribution intact when sharing copies with pupils.
