Free worksheet and solutions · AQA GCSE · 8463 / 8464
AQA GCSE Physics Paper 1 Six Mark Explanations and Practical Methods Worksheet
AQA GCSE Physics Paper 1 six-mark worksheet with answers. Build precise explanations and practical methods using heating, circuits and laboratory evidence.
What is covered
Questions and skills covered

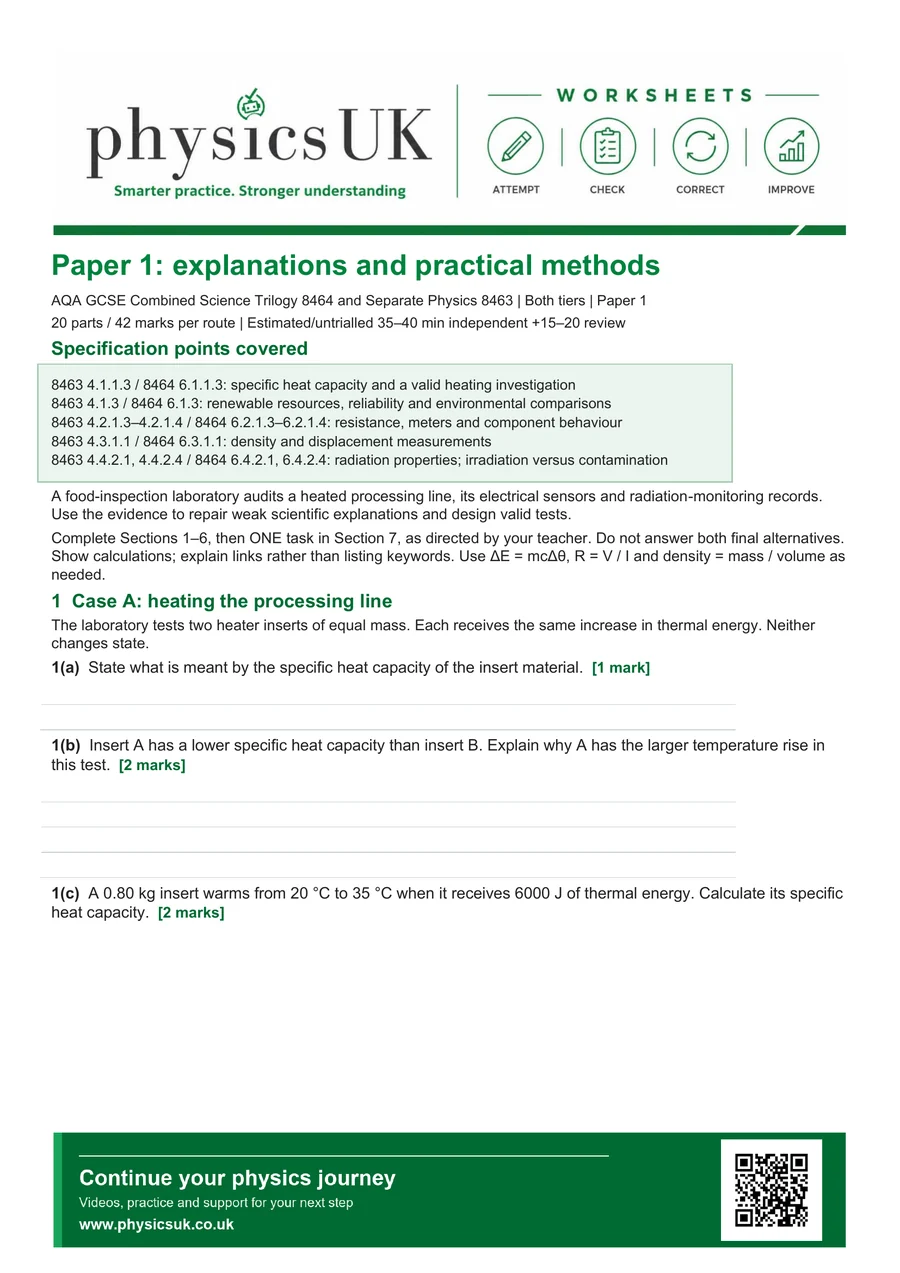

The worksheet contains 7 pages of printable questions. A separate 7-page solutions PDF makes it easy to mark, review or share answers after the activity.
- Specific heat capacity meaning, equal-energy equal-mass temperature comparison, simple calculated c and heat-loss bias
- Energy-resource evidence: renewability, availability after sunset, operational CO2 and justified supply arrangement
- Irregular-solid density from displacement; criterion judgement; valid measurements and bubble bias
- Ammeter series and voltmeter parallel; paired current/pd operating-point resistance comparisons
- Filament heating and increasing resistance, current not doubling; temperature as a control in wire-length work
- Penetration comparison for supplied food-irradiation scenario; irradiation versus radioactive material transfer
- Contamination hazard remains after external source removed
- Repair weak method/evaluation statements with physics links
- One teacher-assigned6mark final method: SHC with joulemeter OR full lampIV including reversed direction
- Original best-fit task-specific levels, validity and logical sequence, not six keyword marks
About this activity
Use precise causal links and evidence; turn practical knowledge into a workable ordered method.
Before you start
After teaching selected Paper1 energy, electricity, density and nuclear radiation. Neither route nor tier adds Higher-only content.
A question from the worksheet
Question6(b), pupil page6
Does repeating an uninsulated heating test remove heat-loss error?
Show the answer
No. Repeating/averaging can reduce random variation but not the systematic bias from energy heating the surroundings.
Common error: Writing repeat for accuracy without identifying which measurement problem is addressed.
Specification fit
AQA GCSE Physics Worksheets
8463 and 8464 · 4.1.1.3, 4.1.3, 4.2.1.3, 4.2.1.4, 4.3.1.1, 4.4.2.1, 4.4.2.4, 6.1.1.3, 6.1.3, 6.2.1.3, 6.2.1.4, 6.3.1.1, 6.4.2.1, 6.4.2.4
- 8463: 4.1.1.3, 4.1.3, 4.2.1.3, 4.2.1.4, 4.3.1.1, 4.4.2.1, 4.4.2.4
- 8464: 6.1.1.3, 6.1.3, 6.2.1.3, 6.2.1.4, 6.3.1.1, 6.4.2.1, 6.4.2.4
Choose the correct pathway: Combined Trilogy 8464 and Separate Physics 8463, both tiers, Paper 1. Complete Sections 1–6 then ONE teacher-assigned final task, 7(a) OR 7(b), never both. Original levels rubrics.
Classroom use
Use the worksheet for class practice, homework, intervention, cover work or revision. Keep the PhysicsUK attribution intact when sharing copies with pupils.
